Explanation

This is one of 63 incomplete explanations: This explanation does not meet our standards. The explanation itself goes all over the place, and table needs some serious work. Why does it keep saying "Agreement"? Who's agreeing? You can help by editing the explanation!

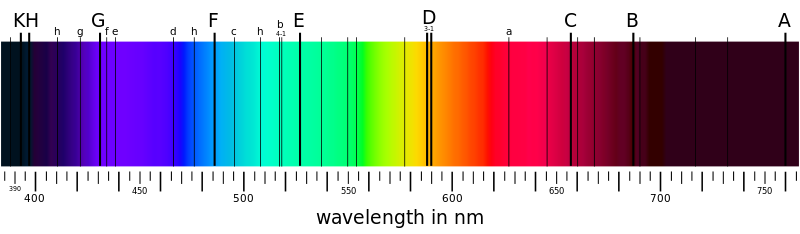

Spectral lines are a method of visualizing what types of light come from a light source. This is an example of the spectrum of the Sun. The various black lines represent chemical elements which are contained in the Sun, as, just like everything else, the Sun is made of elements. However, there are extra lines labeled "those giant sunglasses". The Sun does not actually have sunglasses, but there are often depictions of the Sun wearing sunglasses. These are not meant to be taken seriously.

The Sun's light blocked by sunglasses

The title text is a joke about the Transitions lenses you can get for eyeglasses. These are designed to turn black in the presence of ultraviolet light, and the Sun emits UV. This implies that not only does the Sun have vision problems, it bought Transitions glasses. This is extremely impractical, as in the very high UV radiation next to the Sun, the lenses would always be straight black, essentially canceling out any positive effect from the glasses.

The idea of a sun with sunglasses is a reference to pictures/clipart of the sun wearing sunglasses, often used to denote good weather. Randall has specifically used this picture in at least two what if? articles:

In Into the Sun it is seen in the fourth image. The title text of that image even references the fact that those sunglasses will block the light to Earth:

A partial solar eclipse is when the Earth moves across the part of the Sun blocked by its sunglasses.

This comic is a direct callback to this what if? article.

In Black Hole Moon it is in the first image, also including a banana as the mouth. Both the image and the title text of that image reference the fact that those sunglasses will block (eclipse) some of the light from Earth:

Doctors warn that even sunglasses that block UVB will only protect you from the part of the Sun covered by them.

There is another joke in drawing a Sun with sunglasses because sunglasses are meant to protect your eyes from the sun, so it is unclear what they would protect the Sun's eyes from (perhaps starlight?). Also, any glasses worn by the sun, would, in a sense, become 'sun glasses'.

Element	Wavelength (nm)	Comment
O	759.370	This line is outside the comic's range. So are the two unlabeled lines shown in the spectrum in the picture above around 720 and 730 nm. There are also even more oxygen lines further out in the infrared part of the spectrum not even included in the picture above.
Unlabeled	690	This is the fifth of the five xkcd sunglasses lines. This line is not labeled in the picture above. Wavelength estimated.
O	686.719	Agreement.
Unlabeled	577	This is the fourth of the five xkcd sunglasses lines. This line is not labeled in the picture above. Wavelength estimated.
Unlabeled	660	This line is not labeled, either in the comic or in the picture above. Wavelength estimated. It seems like this one was supposed to be one of the sunglasses lines, and then by mistake the arrow points to the line labeled C, below.
H	656.281	This is the third of the five xkcd sunglass lines. This is actually the Hα line belonging to the hydrogen Balmer series. Seems like a mistake, and more likely it was meant for the arrow to point to the unlabeled line mentioned above here.
Unlabeled	645	This is the second of the five xkcd sunglasses lines. This line is not labeled in the picture above. Wavelength estimated.
O	627.661	Agreement.
Na	589.592	Agreement. There is only one label in the comic (sodium) above these two close lines.
Na	588.995	Agreement. There is only one label in the comic (sodium) above these two close lines.
He	587.5618	This line is so close to the nearest sodium line that only one line is visible, so (both in the comic and in the picture above) only one is shown.
Unlabeled	577	This is the first of the five xkcd sunglasses lines. This line is not labeled in the picture above. Wavelength estimated.
Unlabeled	554	Agreement. This line is not labeled either in the comic or in the picture above. Wavelength estimated.
Unlabeled	549	Agreement. This line is not labeled either in the comic or in the picture above. Wavelength estimated.
Unlabeled	537	Agreement. This line is not labeled either in the comic or in the picture above. Wavelength estimated.
Fe	527.039	Agreement.
Mg	518.362	Agreement. See b below. There are only one label (magnesium) in the comic above these two close lines.
Mg	517.270	These two magnesium lines are so close that only one is visible in the spectrum, so only one is shown, both in the comic and in the picture above.
Fe	516.891	This iron line and the next magnesium line are so close that only one is visible in the spectrum, so only one is shown, both in the comic and in the picture above. There is only one label for both visible lines showing them to be magnesium, even though there are four lines (this one is iron).
Mg	516.733	Agreement. See b above. There are only one label (magnesium) in the comic above these two close lines.
Fe	495.761	Agreement.
H	486.134	Agreement with Hβ.
Unlabeled	476	Agreement. This line is also unlabeled in the table on Wikipedia. "h" is used between H and g below. The wavelength is estimated.
Fe	466.814	Agreement.
Fe	438.355	Agreement.
H	434.047	Agreement with Hγ.
Fe	430.790	Agreement.
Ca	430.774	Agreement.
H	410.175	Agreement with Hδ.
Ca	396.847	Agreement.
Ca	393.366	Agreement.
Unlabeled	389	This is the last line in the picture above. It is not included in the comic. There are even more lines outside the visible spectrum deeper into the ultraviolet which are not even shown in the picture above.

Transcript

[A chart shows the visible colored spectrum of the sun from deep violet to deep red. Along the spectrum are shown 28 black spectral lines of different thickness. Above the chart is a caption:]

The Sun's spectral lines

[Above the chart there are four and below the chart there are two labels, each label has one or more arrows pointing to different black lines. The two that has only one arrow points to two close lines marking them both. Only 22 lines are labeled like this, the other 6 are not labeled. The labels in reading order, with the number of arrows noted behind in square brackets:]

Calcium [3] Iron [5] Sodium [1] Oxygen [2]

Hydrogen [3] Magnesium [1] Those giant sunglasses [5]

Trivia

This comic's release day was postponed from the scheduled Wednesday release to a Thursday release because Randall noticed the extreme popularity of the previous comic on Monday: 1732: Earth Temperature Timeline. Randall even explained this in the header text; see this trivia item from the previous comic. Even though this comic was released on a Thursday, the scheduled Friday comic 1734: Reductionism was still released as planned. This was also the first time this occurred on xkcd - see this trivia section from the next comic, 1734: Reductionism.
